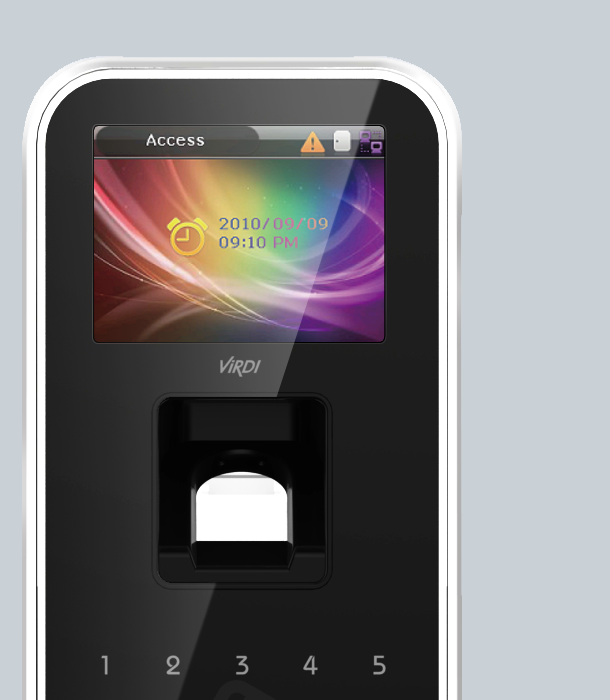

AC-5000 PLUS
IP65 Fingerprint / Card Terminal
An evolution in fingerprint terminal technology,
incorporating state of the art design, elegant looks and
a robust IP65 rated housing.
incorporating state of the art design, elegant looks and
a robust IP65 rated housing.
2.8 inch Color Screen
Intuitive UI , simplifies operation
User Customizable LCD Background
User Customizable LCD Background
Dustproof / Waterproof
IP65 level of Dustproof / Waterproof structure
Specification
Detail Specification AC-5000 PLUS
| CPU | ARM, 533MHz CPU | Memory | 128MB RAM + 32MB FLASH Memory |
|---|---|---|---|
| LCD | 2.8” Color LCD | Max Users | 20,000 (1:1)
15,000 (1:N) |
| Power Consumption | 12V, Max 350mA (4.2W) | ||
| Communication | TCP/IP, Wiegand In/Out, RS485, RS232 |
Log Capacity | 64,000 |
| Dimension | 88 x 175 x 43.5 mm | Certificates | KC, CE, FCC, RoHS |
| RFID Card Option | 125KHz EM / 13.56MHz Smart Card / Desfire / Felica / HID Prox(optional) / HID iClass(optional), SAM Slot | ||
